Uses of Geotextile Bag or Geobag in Civil Engineering.

Geotextile bag or Geobag is the most used Geosynthetic product in the present days. We can use the uses Geotextile bag or geobag in civil engineering infrastructure development projects like River erosion control, Coastal protection, Reinforced Earth wall, Back-filling, Scour hole fill-up and much more. As it made from polymer products, its lifetime is longer than a conventional Cement bag or any other filled bag.

The application of geobag is very easy. It needs minimum construction time with minimum machinery and equipment with unskilled and semi-skilled manpower. In present days geobags are used as the replacement of boulder.

What is Geobag?

Geobag is a Pillow shape bag or container which produce from the stitching of Woven or Nonwoven geotextile fabric. Generaly it is stitched at two sites and the mouth is open for infill, after filling need to close the mouth with hand heled stitching machine.

Geobag is filled in site with Sand, Soil, Crushed Stone or available filling materials. But sand is the suitable infill material for geobag for its best result.

Types of Geotextile Bags

Geobag is mainly Woven Geobag, Nonwoven Geobag and Composite Geobag. Geobag is mainly Identified by their Mass properties as GSM- Gram per Square Metre. In the market, there are available various types of Geobags with different GSM. Geobag is available with the range of 100 to 1200 GSM.

Raw material of Geobag

As Geobag are made from Geotextile, so that its raw material are mainly PP-Polypropylene or PET- Polyethylene

Size of Geobag

In India the maximum use geotextile bag size is like below-
1. Geobag TYPE-A (1.03 M X 0.7 M)
2. Geobag Type -B or Geocomposite Megabag (2 M X 1.5 M)
Other than above, geotextile bag can be made in various size, it is absolutely in requirement basis.

Geobag
Geotextile bag Type A 1.03 X 0.7 M
Uses of Geotextile Bag in civil engineering
Composite Megabag Type B 2 X1.5 M
How to Design Geobag Structure

To design any types of Geosynthetics structure please contact with us. or click on Below link, ZenTraac Engineers and Consultants Pvt. Ltd. is one of the best Consultant in India in Geosynthetics filled.

Technical Properties or Specification of Geobag

Geotextile bags have various types of technical specifications. They have their own properties. Here we share a sample technical specification of 300 GSM (Gram per Sq. M) PET Geotextile bag.

Properties Unit Test Method Value (TYP)
Mass per unit area GSM ASTM D5261 300
Wide Width Tensile Strength (MD) KN/m ASTM D4595 9.0
Wide Width Tensile Strength (XMD) KN/m ASTM D4595 9.0
Wide Width Tensile Elongation (MD) % ASTM D4595 50
Wide Width Tensile Elongation (XMD) % ASTM D4595 50
Trapezoid Tearing Strength (MD) N ASTM D4533 340
Trapezoid Tearing Strength (XMD) N ASTM D4533 340
Static Puncture strength N ASTM D6241 1400
UV Resistance (500 Hrs.) % ASTM D4355 70
Apparent opening Size µm ASTM D4751 100
Permittivity S -1 ASTM D4491 1.25
Bag Dimension M 1 x 0.7 (O/O)
Volume of filled Bag Cu. M 0.07
Weight of filled Bag Kg 126

Applications of Geotextile Bag / Geobag

We are going to discuss the uses of Geotextile Bags. It rapidly used worldwide in infrastructure projects as short term and long term or permanent structures. Maximum use of geobags is in River projects, Coastal Erosion Control Projects etc.

READ  Improve bearing capacity of soft soil using sand compaction pile

In River, Geotextile bag used as-

  1. Riverbank protection work-As slope pitching in place of conventional boulder pitching.
  2. Apron pitching, Scour hole fill-up.
  3. River Embankment Protection Work.
  4. Constructions of River Spur, Groins, Deflector.
geobag geotextile bag
Geobag in River bank protection

Uses of Geotextile Bag in Coastal Application-

  1. Sea wall construction.
  2. Spur constructions.
  3. Scour prevention.

Uses of Geotextile Bag in Road Embankment-

  1. Geobag can use to protect road embankment slope.
  2. Geobag can use as a facia of the Retaining earth wall.
    But on wide basis Geobags are used in India and Bangladesh as a main riverbank protection material from the last decade.
    Uses of Geotextile Bag in projects are more nature friendly and economical from conventional method.
Uses of geotextile bag in civil engineering

How to use Geotextile Bags?

Geobag Installation Procedure:

  1. Handling geobag :- Unpack the bags at the site where the filling has to be done. If some unpacked bags remain after filling, it should be counted, repacked, and kept wrapped in its packing sheet or any other suitable cover to prevent ultraviolet exposure.
    During loading, transport, unloading, and dumping processes the bag shall be lifted and handled with care, without overstretching the geotextile, puncturing the bags, destroying the seams, or causing any other defect which will reduce the quality of the bag as a protective element.
  2. Counting by Setting a counter: – Generally, Geobags are packed in 100 nos in a bale with a bunch of 10 by 10 (10 x10).
Geobag
Geobag Packeting

3. How to fill Geobag

  • Site selection – Filling of the bag takes place in an appropriate area clean and free from flooding, wave action or threat of erosion. Space for filling should be at least 3 times the daily average filling rate. Excavation of sand at or near the site should be prohibited.
  • Filling material (sand) selection – The quality of sand or filling material should be as per the specification agreed upon. but generally, geobags are filled with sand, earth. Using of sand in geobag is more effective. For that Geobag are also called as Sand bag.
Filling material for geobag
  • Methodology –
    i) Earthmover or excavator
     ii) Shovel – 1nos / 2 nos of labour.
  • Manpower-
    I) labor
     ii) supervisor
     iii) Civil Engineer

     Firstly, stockpile the sand in distinct heaps not exceeding 2000 cum by excavator or earth mover.
    Secondly, fill the bags with specified sand manually with a shovel and vibrate the bag manually for proper filling after every 30 cm of filling. Weight should be checked randomly. Bags should be filled in a stack of hundred nos of the batch for easy counting for example 10 x 10, 5 x 20 etc. as per site condition. After that stack should be numbered, e.g. X, Y, etc. Now bags are ready for stitching.
Stack of geobag for numering
Stacking of Geotextile Bag

How to Stitch Geobag mouth?

  • Stitching: –
  • Quality of stitching- Bag will be closed by two line of stitching. The stitching shall be a ‘staple’ or ‘prayer’ seam with double chain stitch. The stitches will be placed at a minimum of 2 cm but not more than 2.5 cm from the top of the bags and minimum 3mm apart. The end of the first seam must be secured by the second arch-shaped seam crossing the first near the ends.
  • Methods of Closing Geobag mouth

    Machinery Requirements
  • Double-needle/ single-needle Stitching Machine
  • Portable Generator or 5 KVA DG set
  • Needle – As requirements
  • Other accessories of sewing machine
Stitching of Geobag

Manpower-

  • 1 Stitcher
  • 1 mechanic / 15 machine
  • supervisor
  • Engineer
READ  Applications of Geocell in Geotechnical or Civil Engineering

First, the stitcher checks the Electric handheld sewing machine and the power supply before starting stitching operation. If it’s a double-needle machine then two threads are attached to the machine and if one, one is attached. After that stitcher begins stitching –one at a time. Stitcher should be a trained person to ensure safe and quality work. There must be extra 1.25 times of total units of working Sewing machines which are needed on a daily basis.

Placement of bags on the slope: – Placing the bags on the slope, confirm that the slope is in proper shape and size. Generally, bags are placed in the ENGLISH BOND style. Bags are placed from bottom to top on the slope.

Methodology

Required Accessories-I) Rope ii) Bamboo or wooden runner
Manpower- I) 10 labours, ii) 1 supervisor

Caring of geobag
Caring of Geobag in site

This operation is done completely manually. For bag placing on slope, Chainage is divided in 10m interval and marked with survey pegs. Bags are placed as- first layer horizontally then the second layer is placed laterally (longitudinally). Ropes and bamboos are used for shifting the bags.

Placement of bag In Under Water:-It is same as dry surface but needs to be monitored carefully.

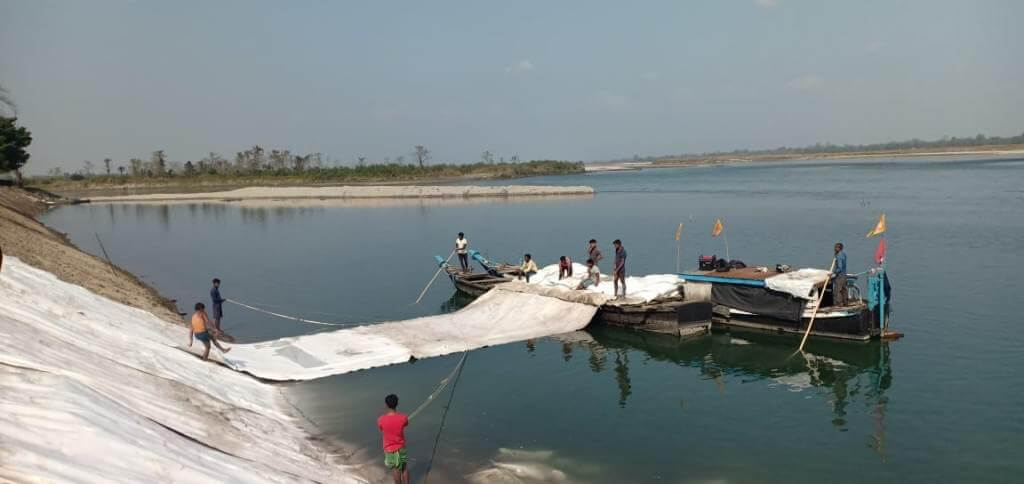

Dumping of bags with and without boat:-

Geobag are dumped with boat (or as provisioned in contract) if the water depth is more than 1m. Each unit is guided under an expert supervisor.

As per the working length of boat, chainage is divided in intervals and chainage-pegs are placed accordingly. Bags should be dumped from inside river towards the bank. For anchoring purposes, boats are tied with rope on the bank and river anchor.

READ  Improve bearing capacity of soft soil using sand compaction pile

On both ends of the dumping area around the boat, two measuring ropes are tied for proper placement of bag dumps. Bags are dumped horizontally in specified layers and at distance as per the measuring rope.

 Bags are loaded on the boat manually or mechanically as per the site condition. Bags are horizontally stacked in layers on a boat for easy accounting and ease of dumping.

Duming of geobag in river

The dumping process without a boat is similar to the placement of bags in dry conditions and underwater.

In INDIA there are many manufacturers and consultants are establishing geosynthetics products like Geotextiles, Geotextile bags and many geosynthetics products to grow up India’s infrastructure.

ZenTraac Engineers and Consultants Pvt. Ltd. is one and only Geosynthetics consultant who has a wide range of Geosynthetics products and in-hand experience of Design, Product implementation, Marketing Skills and Project execution knowledge from last 27 years.
For any kind of Geosynthetics related quarries and technical issue or product-related quarries please fill free to comment in below…
